CombiCut
Massive CNC-equipments designed especially for multu-schift operations with high volume of oxyfuel cutting.

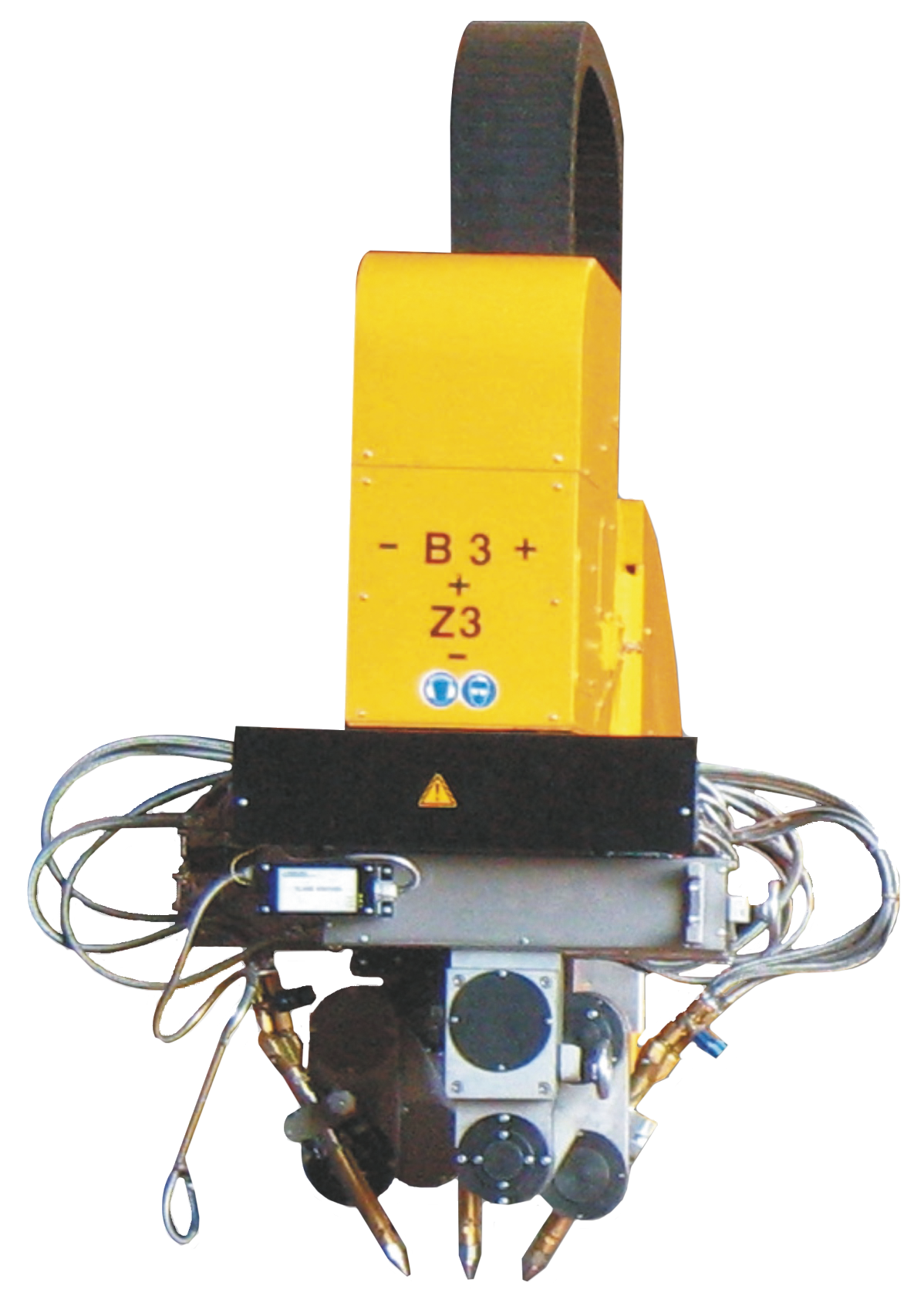

This robust and high-precision CNC machine is designed especially for multiple-shift, high-performance plasma and oxyfuel cutting. It allows cutting of steel up to 300mm, bevel cutting with a pair of rotary oxyfuel triple torches or plasma rotators, simultaneous cutting with more than 10 torches, drilling up to Ø 40 mm, inkjet or micropercussion marking, pipe and dome processing.
| Working length | 1 500 – 50 000 mm |
|---|---|
| Working width | 1 500 – 8 000 mm |
| Max. number of tool stations | 6 (8G) |
| Max. thickness of material cut by plasma | according to a plasma source |
| Max. thickness of material cut by oxyfuel | 300 mm |
| Positioning speed in X direction | up to 30 m/min |
| Positioning speed in XY | up to 50 m/min |
| Positioning accuracy | 0,05 mm |
