MasterCut
Machine designed for fully automated cutting especially oxyfuel cutting in combination with plasma cutting.

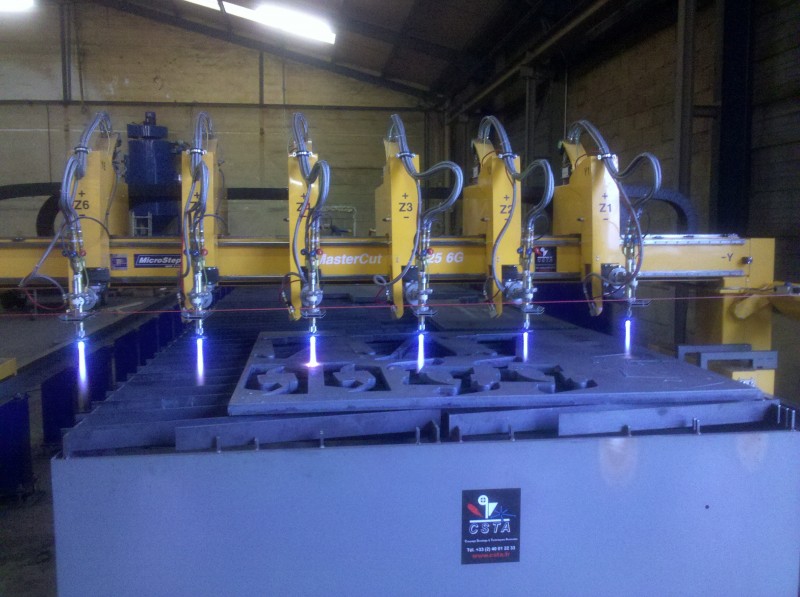

Mastercut is a versatile CNC cutting machine which can be applied throughout the industry reaching from small workshops to big factories. The application range of the entry version with rails in X direction dedicated to fully automated oxyfuel cutting or cutting with conventional plasma can be enhanced to a variety of high precision plasma cutting applications including pipe, profile or elbow cutting and marking.
| MasterCut | MasterCut-X | |
|---|---|---|
| Working length | 1 500 – 30 000 mm | |
| Working width | 1 500 – 4 000 mm | |
| Max. number of tool stations | 4 (6G) | |
| Max. thickness of material cut by plasma | according to a plasma source | |
| Max. thickness of material cut by oxyfuel | 150 mm (optionally 200 mm) | |
| Positioning speed in X direction | up to 30 m/min | up to 40 m/min |
| Positioning speed in XY | up to 43 m/min | up to 51 m/min |
| Positioning accuracy | 0,05 mm | |
